MAB Series Pneumatic Air Pressure Amplifier

MAB02 air booster pump uses a single gas-controlled unbalanced gas distribution valve to achieve the reciprocating movement of the pump. All are made of aluminum alloy and stainless steel. The seals used are internationally high-quality products. The service life of the pump is recommended to drive air pressure ≤8bar. The driving piston diameter of this pump is 100mm, which is a double driving pump.

ODMT air driven air amplifiers can be applied in air-pressured system when it needs to amplify the pressure. These amplifiers can increase the air pressure to 2-5times. The compressed air in the working system is the air source. This kind of pump is suitable for single air source pressurization.

◆ Maximum working pressure up to 40 bar

◆ Maximum flow: 1.350Ln/min

◆ No additional energy consumption when the set pressure is reached.

◆ No electricity required. (It can be used in areas that need explosion-proof.)

MAB02 air booster pump uses a single gas-controlled unbalanced gas distribution valve to achieve the reciprocating movement of the pump. All are made of aluminum alloy and stainless steel. The seals used are internationally high-quality products. The service life of the pump is recommended to drive air pressure ≤8bar. The driving piston diameter of this pump is 100mm, which is a double driving pump.

MAB02

Type MAB02
Pressure ratio 2:1
Drive pressure(bar) 1-8
Drive port G3/8
Inlet ZG3/8
Outlet ZG3/8

Driving air source: clean compressed air;

Type: Air booster pump;

Driving compressed air pressure: 2-8bar;

Maximum output air flow: 580Ln / min;

Maximum output air pressure: 16bar;

Applicable medium: clean air;

Minimum air inlet pressure: 2bar;

Maximum air inlet pressure: 16bar;

Maximum noise index: 79db;

Maximum operating temperature: 60 ° C;

Drive air inlet size: G3 / 8 ";

Air suction port size: G3 / 8 ";

High-pressure air outlet size: G3 / 8 ";

Equipment net weight: 4.2kg.

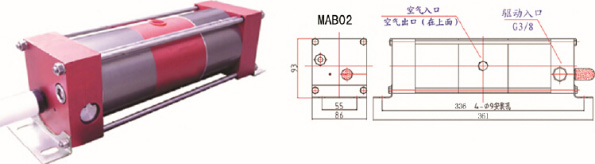

Dimensions: 346mm * 86mm * 93mm

MAB02 Working Curve

MAB02 Working Curve
