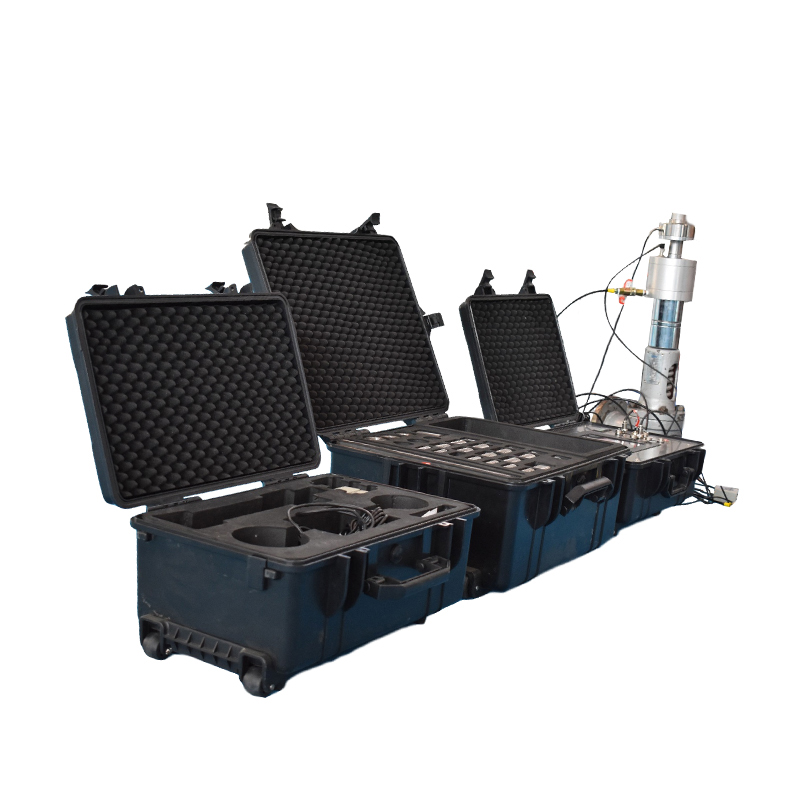

Online Relief valve test equipment online safety valve test bench
Product application:
OD-DL-S safety valve online calibrator is a portable safety valve online calibration device independently developed by our company. for electric power, chemical industry, metallurgy and professional inspection institutions. All the advantages of this product, such as convenient and stable structure, are gathered. It is suitable for on-line detection of opening pressure of various spring type safety valves and pressure relief valves in boilers, pressure vessels and pressure pipelines. It is the first to create two kinds of central processing and data acquisition modes of "cold state" and "hot state", which is the only product in China that can accurately use the two methods for detection. It can detect the pressure of various safety valve spool opening height to detect the spring linearity. The product is fast, sensitive, safe and accurate. At present, it is one of the best cost-effective products in China.
Performance parameters:
1. Convenient manual detection mode: PLC control, manual pump pressurization, intelligent and quick operation
2. Full performance double opening mode: Online cold displacement opening and hot feature point opening
3. Full parameter digital display mode: real time display and monitoring of valve disc displacement and lifting force, and automatic generation of measurement results
4. Connection mode: direct series connection (without frame)
5. Lifting force range: 0-10t
6. Scope of application (DN 15-dn600) direct acting spring safety valve, pulsating safety valve, pilot safety valve, safety valve with power auxiliary device
7. The controllable range of valve core opening height: the opening height can be controlled as 0.0.mm (micro opening) - 5mm (full opening)
8. Return function: automatic return
9. Core configuration: imported hydraulic pump, displacement sensor, Germany; PLC system is supported by German Siemens company
10. Working environment temperature: - 20 ℃ - 60 ℃
11. Instrument error: ≤± 1%
Model: OD-DS-L
N.o | Name | Number | Unit | Notes |
1 | Electronic control box | 1 | unit | |
2 | 5T oil cylinder | 1 | unit | Include Displacement sensor |
3 | 10T oil cylinder | 1 | unit | Include Displacement sensor |
4 | Weighing sensor 1T | 1 | Set | |
5 | Weighing sensor 2T | 1 | Set | |
6 | Weighing sensor 5T | 1 | Set | |
7 | Weighing sensor 10T | 1 | Set | |
8 | Load cell transmitter 1T | 1 | Set | |
9 | Load cell transmitter 2T | 1 | Set | |
10 | Load cell transmitter 5T | 1 | Set | |
11 | Load cell transmitter 10T | 1 | Set | |
12 | Hand pump | 1 | unit | |
13 | Oil cylinder support | 1 | Set | |
14 | 5T Upper cushion block of oil cylinder | 1 | piece | |
15 | 10T Upper cushion block of oil cylinder | 1 | piece | |
16 | M12 tie rod | 1 | piece | |
17 | M24 tie rod | 1 | piece | |
18 | M12 swivel nut | 1 | piece | |
19 | M24 swivel nut | 1 | piece | |
20 | Washer | 1 | piece | 50-26-15 |
21 | Washer | 1 | piece | 50-13-10 |
22 | M12 series tie rod joint. | 1 | piece | M12-M8 |
23 | M12 series tie rod joint. | 1 | piece | M12-M10 |
24 | M12 series tie rod joint. | 1 | piece | M12-M12 |
25 | M12 series tie rod joint. | 1 | piece | M12-M14 |
26 | M12 series tie rod joint. | 1 | piece | M12-M16 |
27 | M12 series tie rod joint. | 1 | piece | M12-M18 |
28 | M12 series tie rod joint. | 1 | piece | M12-M20 |
29 | M24 series tie rod joint. | 1 | piece | M24-(39.8-6 55°) |
30 | M24 series tie rod joint. | 1 | piece | M24-M30*4 |
31 | M24 series tie rod joint. | 1 | piece | M24-M27*3 |
32 | M24 series tie rod joint. | 1 | piece | M24-M26.5*3 |
33 | M24 series tie rod joint. | 1 | piece | M24-(29.3-11 55°) |
34 | M24 series tie rod joint. | 1 | piece | M24-(28.5-12 55°) |
35 | M24 series tie rod joint. | 1 | piece | M24-(22-14 55°) |
36 | M24 series tie rod joint. | 1 | piece | M24-(24.2-8 55°) |
37 | M24 series tie rod joint. | 1 | piece | M24-(31.2-7 55°) |
38 | Smooth rod safety valve connection tooling | 1 | Set | Internal and external wire connector |
39 | Light rod safety valve chuck | 1 | Set | ER32-8 |
40 | Light rod safety valve chuck | 1 | Set | ER32-10 |
41 | Light rod safety valve chuck | 1 | Set | ER32-12 |
42 | Light rod safety valve chuck | 1 | Set | ER32-14 |
43 | Light rod safety valve chuck | 1 | Set | ER32-16 |
44 | sound transducer | 1 | Set | |
45 | pipeline | 1 | Set | 2 per set |
46 | Displacement sensor cable | 1 | Set | 8m（2*4m） |
47 | Weighing sensor cable | 1 | Set | 8m（2*4m) |
48 | Sound sensor cable | 1 | Set | 8m（2*4m) |
49 | External power supply and adapter | 1 | Set | |
50 | Laptop adapter | 1 | Set | |
51 | Battery charging adapter | 1 | Set |
We warmly welcome the dealers local and abroad to negotiate business and work hand in hand with us for progress.
