OG Series Air Driven Liquid Pump

OG series of pump uses single pneumatic non-equilibrium gas distributing valves to move to and fro automatically. The drive parts of the pump are made of aluminum alloy. These parts are treated with oxidation into black to ensure their good-looking appearance and stainless performance.
Availability:

OG series of pump uses single pneumatic non-equilibrium gas distributing valves to move to and fro automatically. The drive parts of the pump are made of aluminum alloy. These parts are treated with oxidation into black to ensure their good-looking appearance and stainless performance.

The fluid contacting parts are made of carbon steel or stainless steel according to different media. The full set of sealing parts is imported, to ensuring pumps’ performances. The diameter of drive piston is 100mm. The maximum drive pressure is 10bar. We suggest customers use air pressure≤8bar to ensure long lifespan of the pump.

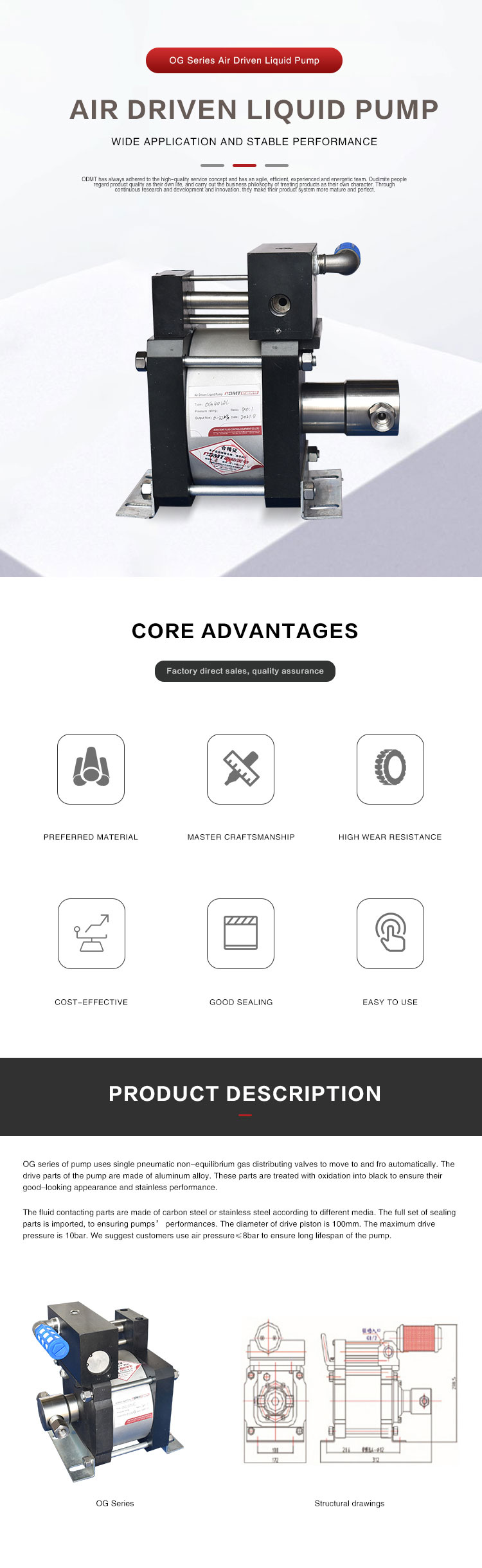

OG-Gas-liquid-booster-pump_01

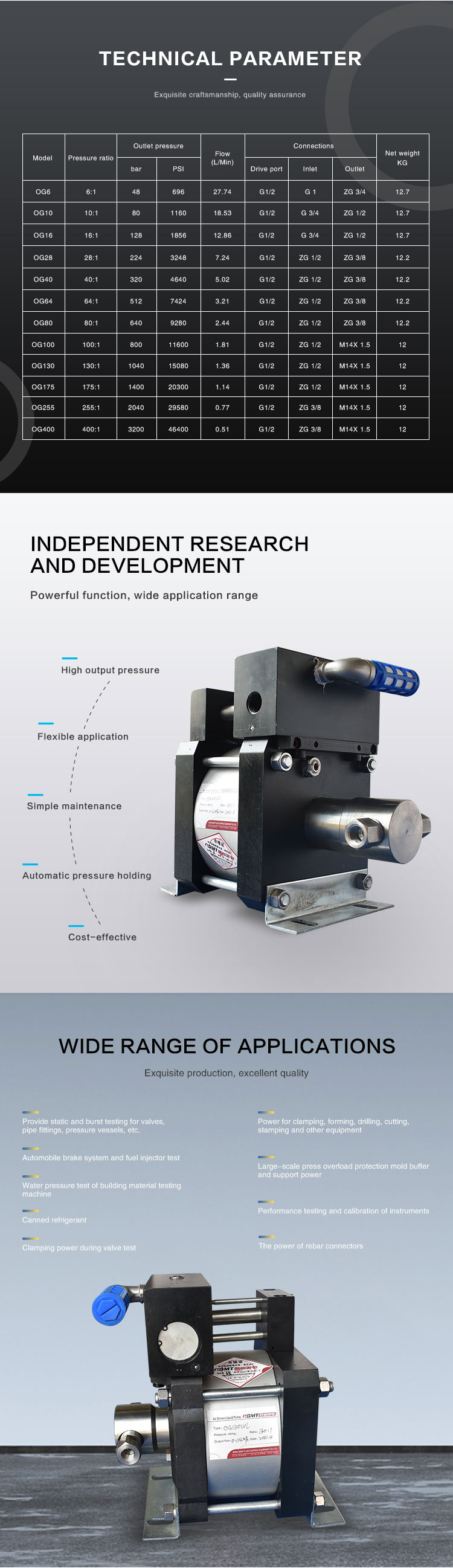

OG-Gas-liquid-booster-pump_02

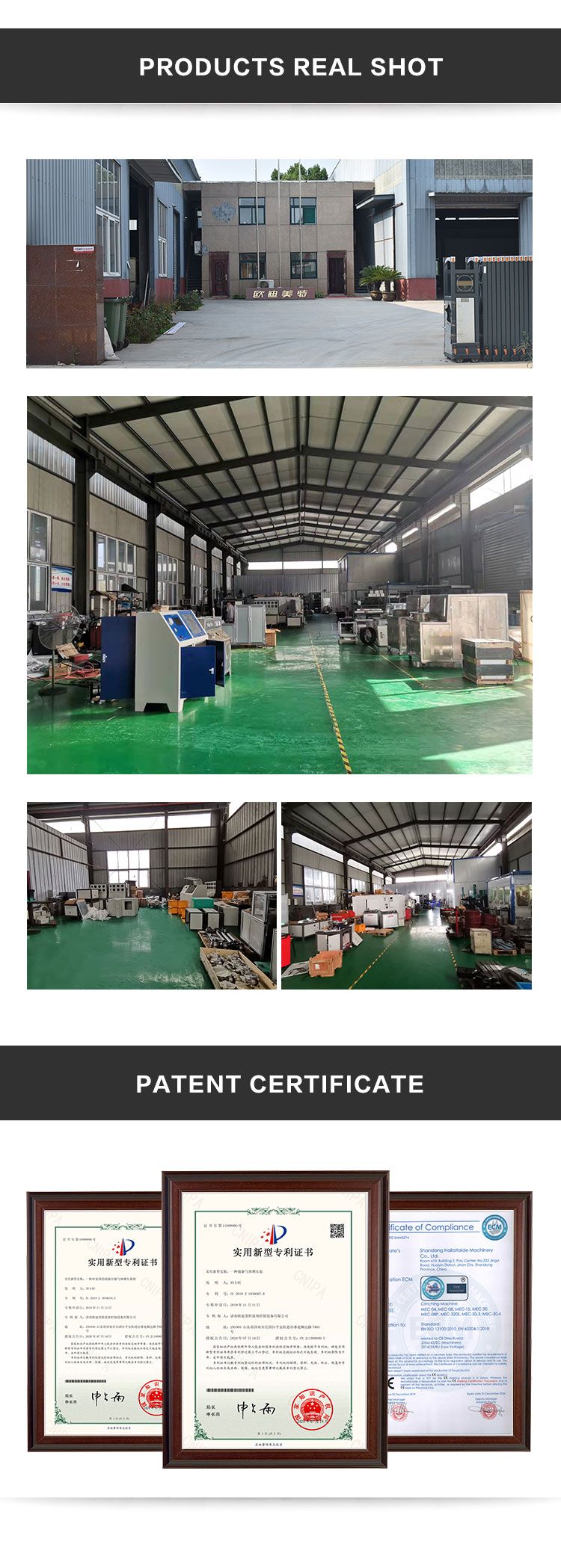

OG-Gas-liquid-booster-pump_03

G-series

Model Pressure ratio Outlet pressure Flow
1/Min
Connections Net weight
KG
bar psi Drive port Inlet Outlet
OG6 6:1 48 696 27.74 G1/2 G 1 ZG 3/4 12.7
OG10 10:1 80 1160 18.53 G1/2 G 3/4 ZG 1/2 12.7
OG16 16:1 128 1856 12.86 G1/2 G3/4 ZG 1/2 12.7
OG28 28:1 224 3248 7.24 G1/2 ZG 1/2 ZG 3/8 12.2
OG40 40:1 320 4640 5.02 G1/2 ZG 1/2 ZG 3/8 12.2
OG64 64:1 512 7424 3.21 G1/2 ZG 1/2 ZG 3/8 12.2
OG80 80:1 640 9280 2.44 G1/2 ZG 1/2 ZG 3/8 12.2
OG100 100:1 800 11600 1.81 G1/2 ZG 1/2 M14X 1.5 12
OG130 130:1 1040 15080 1.36 G1/2 ZG 1/2 M14X 1.5 12
OG175 175:1 1400 20300 1.14 G1/2 ZG 1/2 M14X 1.5 12
OG255 255:1 2040 29580 0.77 G1/2 ZG 3/8 M14X 1.5 12
OG400 400:1 3200 46400 0.51 G1/2 ZG3/8 M14X 1.5 12
