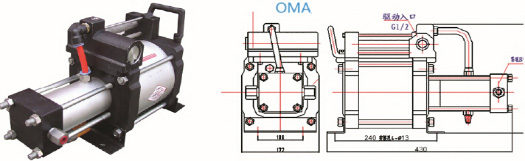

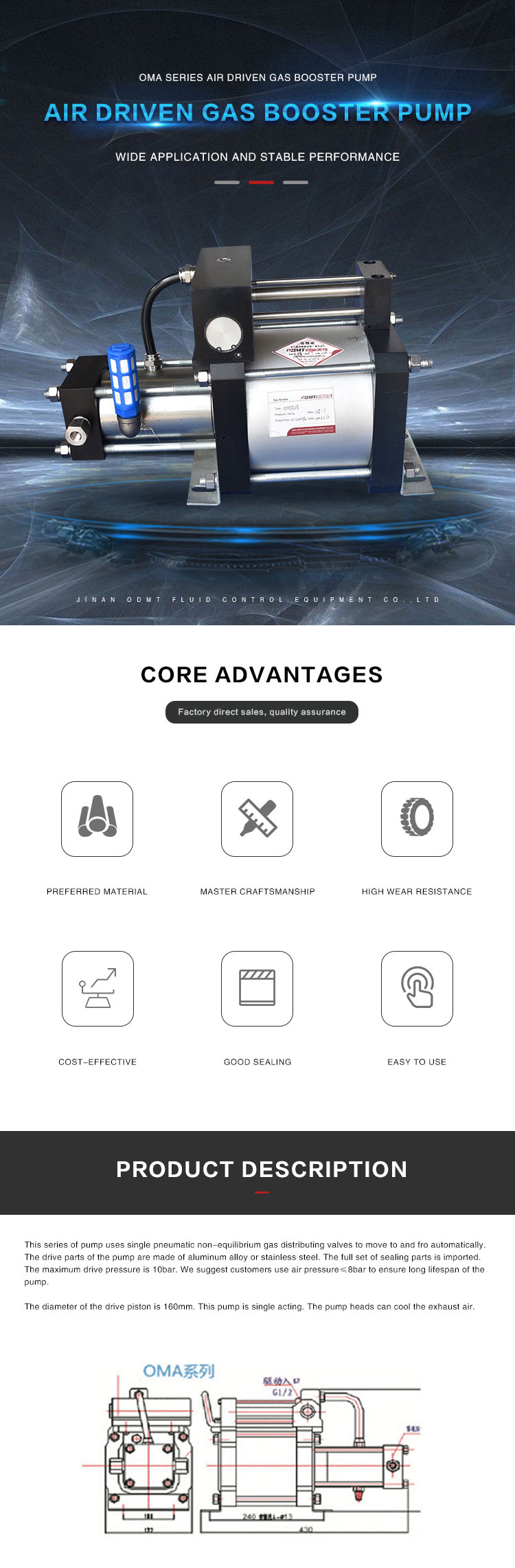

This series of pump uses single pneumatic non-equilibrium gas distributing valves to move to and fro automatically. The drive parts of the pump are made of aluminum alloy or stainless steel. The full set of sealing parts is imported. The maximum drive pressure is 10bar. We suggest customers use air pressure≤8bar to ensure long lifespan of the pump.
The diameter of the drive piston is 160mm. This pump is single acting. The pump heads can cool the exhaust air.

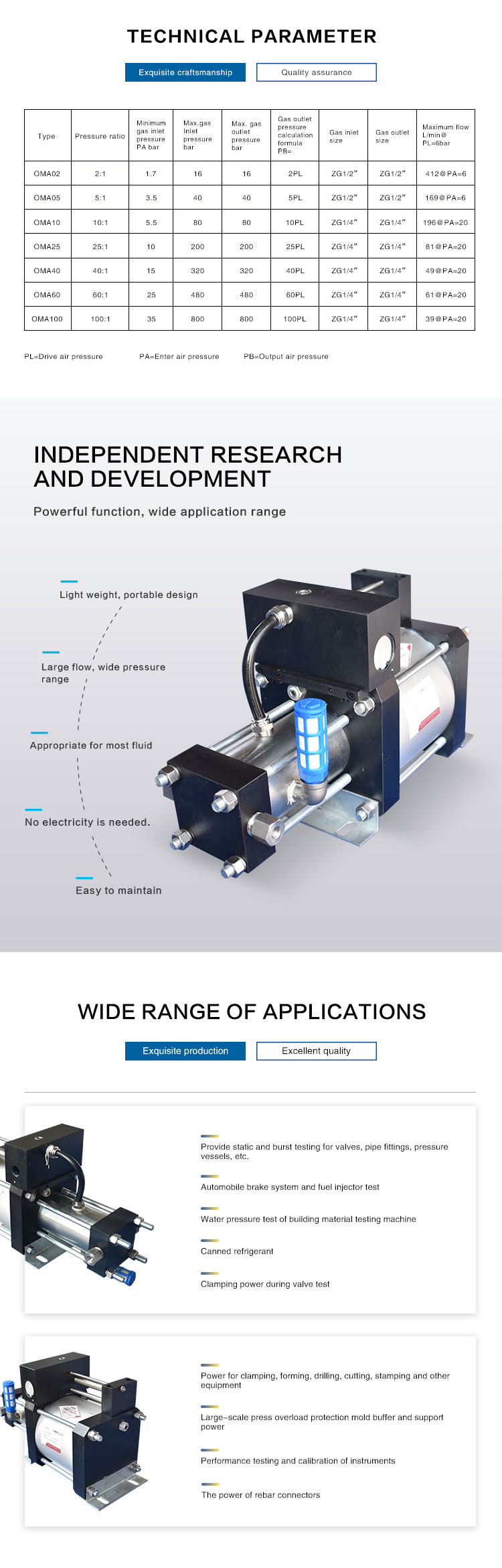

Type | Pressure ratio | Min. Gas Inlet Pressure PA (bar) | Max. Gas Inlet Pressure PA (bar) | Max. Allowed Outlet Pressure PB (bar) | Outlet Pressure Calculate Formula PB | Gas Inlet | Gas Outlet | Max. Flow Ln/min @PL=6bar |
OMA02 | 2:1 | 1.7bar | 16bar | 16bar | 2PL | ZG1/2 | ZG1/2 | 412@PA=6 |
OMA05 | 5:1 | 3.5bar | 40bar | 40bar | 5PL | ZG1/2 | ZG1/2 | 169@PA=6 |
OMA10 | 10:1 | 5.5bar | 80bar | 80bar | 10PL | ZG1/4 | ZG1/4 | 196@PA=6 |
OMA25 | 25:1 | 10bar | 200bar | 200bar | 25PL | ZG1/4 | ZG1/4 | 81@PA=6 |
OMA40 | 40:1 | 15bar | 320bar | 320bar | 40PL | ZG1/4 | ZG1/4 | 49@PA=6 |
OMA60 | 60:1 | 25bar | 480bar | 480bar | 60PL | ZG1/4 | ZG1/4 | 61@PA=6 |
OMA100 | 100:1 | 35bar | 800bar | 800bar | 100PL | ZG1/4 | ZG1/4 | 39@PA=6 |
PL=drive pressure PA=input gas pressure PB=output gas pressure
This series of pump uses single pneumatic non-equilibrium gas distributing valves to move to and fro automatically. The drive parts of the pump are made of aluminum alloy or stainless steel. The full set of sealing parts is imported. The maximum drive pressure is 10bar. We suggest customers use air pressure≤8bar to ensure long lifespan of the pump.
The diameter of the drive piston is 160mm. This pump is single acting. The pump heads can cool the exhaust air.
Type | Pressure ratio | Min. Gas Inlet Pressure PA (bar) | Max. Gas Inlet Pressure PA (bar) | Max. Allowed Outlet Pressure PB (bar) | Outlet Pressure Calculate Formula PB | Gas Inlet | Gas Outlet | Max. Flow Ln/min @PL=6bar |
OMA02 | 2:1 | 1.7bar | 16bar | 16bar | 2PL | ZG1/2 | ZG1/2 | 412@PA=6 |
OMA05 | 5:1 | 3.5bar | 40bar | 40bar | 5PL | ZG1/2 | ZG1/2 | 169@PA=6 |
OMA10 | 10:1 | 5.5bar | 80bar | 80bar | 10PL | ZG1/4 | ZG1/4 | 196@PA=6 |
OMA25 | 25:1 | 10bar | 200bar | 200bar | 25PL | ZG1/4 | ZG1/4 | 81@PA=6 |
OMA40 | 40:1 | 15bar | 320bar | 320bar | 40PL | ZG1/4 | ZG1/4 | 49@PA=6 |
OMA60 | 60:1 | 25bar | 480bar | 480bar | 60PL | ZG1/4 | ZG1/4 | 61@PA=6 |
OMA100 | 100:1 | 35bar | 800bar | 800bar | 100PL | ZG1/4 | ZG1/4 | 39@PA=6 |
PL=drive pressure PA=input gas pressure PB=output gas pressure
