OMD Series Air Driven Gas Booster Pump

This series of pump has single stage. To reach the needed pressure, the input gas should be pressurized to some degree in advance. The pre-adding pressure is different according to the needed maximum pressure. The maximum pressure can be up to 80Mpa. The reversing way of OMD-Series is the same as that of OMA-Series, but OMD-Series has double pump heads, which is designed based on OMA-Series. The pump is made of aluminum alloy and stainless steel. The diameter of its drive piston is 160mm, drive gas pressure≤8bar. Both pump heads can cool the exhaust gas.

Availability:



Inquire

Product Description

This series of pump has single stage. To reach the needed pressure, the input gas should be pressurized to some degree in advance. The pre-adding pressure is different according to the needed maximum pressure. The maximum pressure can be up to 80Mpa. The reversing way of OMD-Series is the same as that of OMA-Series, but OMD-Series has double pump heads, which is designed based on OMA-Series. The pump is made of aluminum alloy and stainless steel. The diameter of its drive piston is 160mm, drive gas pressure≤8bar. Both pump heads can cool the exhaust gas. The pipelines which connect the two inlets and two outlets will be completed according to customers’ requirements before they leave the factory.

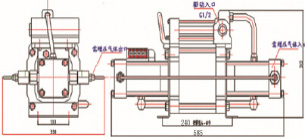

OMD-series

Type	Pressure ratio	Min. Gas Inlet Pressure PA (bar)	Max. Gas Inlet Pressure PA (bar)	Max. Allowed Outlet Pressure PB (bar)	Outlet Pressure Calculate Formula PB	Gas Inlet	Gas Outlet	Max. Flow Ln/min @PL=6bar
OMD10	10:1	5 bar	80 bar	80 bar	10PL+PA	ZG1/4	ZG1/4	372@PA=6
OMD25	25:1	10bar	200bar	200bar	25PL+PA	ZG1/4	ZG1/4	154@PA=20
OMD40	40:1	15bar	320bar	320bar	40PL+PA	ZG1/4	ZG1/4	92@PA=20
OMD60	60:1	25bar	480bar	480bar	60PL+PA	ZG1/4	ZG1/4	115@PA=40
OMD100	100:1	35bar	800bar	800bar	100PL+PA	ZG1/4	ZG1/4	74@PA=40
