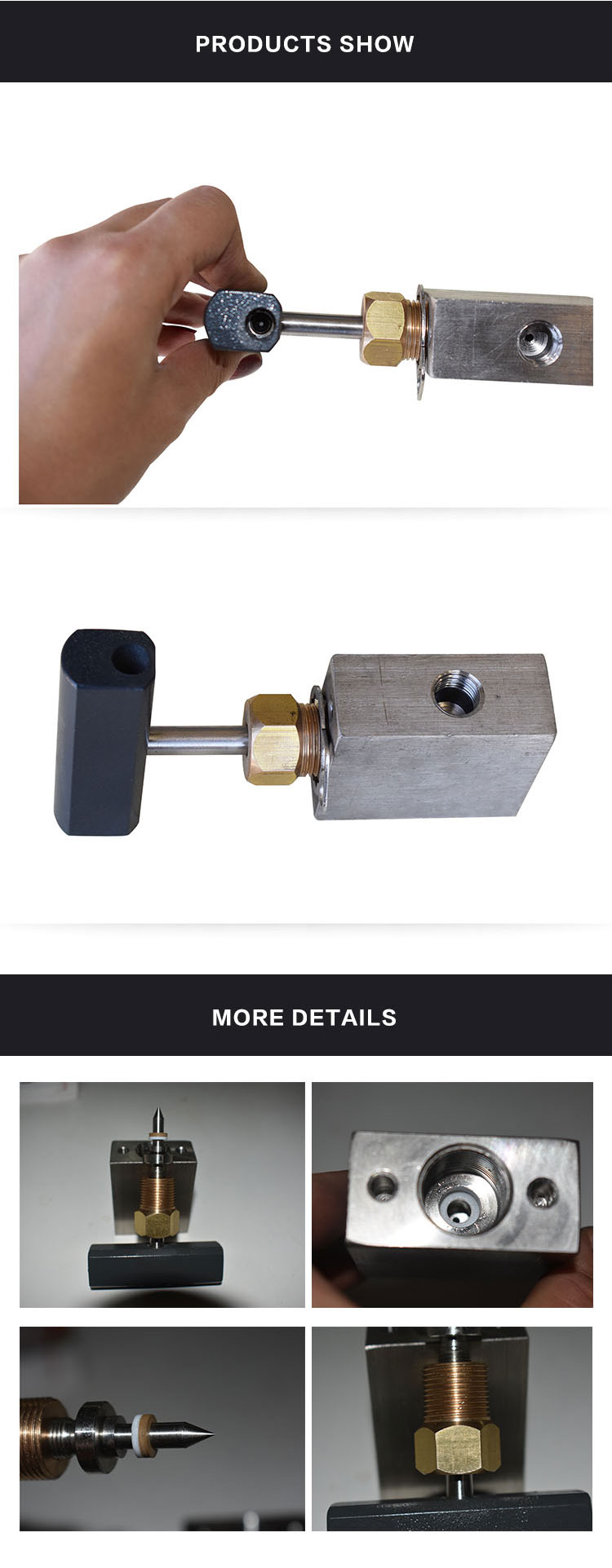

Features of ODMT ultra high pressure needle valve:
1. The handle designed according to ergonomics is convenient and comfortable to operate;
2. The unique split stem design solves the problem of concentricity;
3. High quality alloy double thread design,The problem of concentricity is reduced;
4. It is equipped with reliable anti rotation fixing device;
5. Panel or bracket installation;
6. PTFE filler has low friction and long service life;
7. Austenitic, 316 stainless steel body is more resistant to cold corrosion. Conical surface metal seal, whether the medium is gas or liquid, can be completely sealed;
8. The pressure relief hole and connection mode meet the international standard of high pressure threaded connection:
9. Stainless steel nuts and screw sleeves are used for valves.

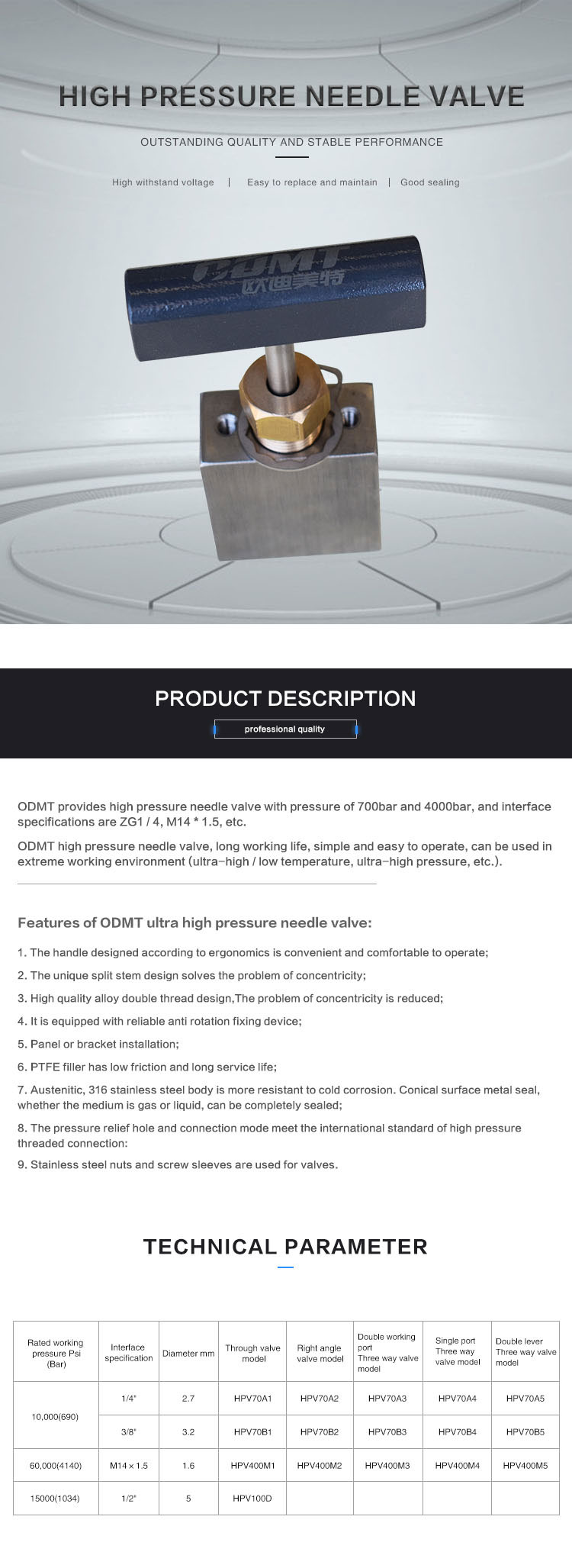

ODMT provides high pressure needle valve with pressure of 700bar and 4000bar, and interface specifications are ZG1 / 4, M14 * 1.5, etc.
ODMT high pressure needle valve, long working life, simple and easy to operate, can be used in extreme working environment (ultra-high / low temperature, ultra-high pressure, etc.).
| Rated working pressure Psi(Bar) | Interface specification | Diameter mm | Through valve model | Right angle valve model | Double working port Three way valve model | Single port Three way valve model | Double lever Three way valve model |
| 10,000(690) | 1/4" | 2.7 | HPV70A1 | HPV70A2 | HPV70A3 | HPV70A4 | HPV70A5 |
| 3/8" | 3.2 | HPV70B1 | HPV70B2 | HPV70B3 | HPV70B4 | HPV70B5 | |
| 60,000(4140) | M14×1.5 | 1.6 | HPV400M1 | HPV400M2 | HPV400M3 | HPV400M4 | HPV400M5 |
| 15000(1034) | 1/2" | 5 | HPV100D |
Features of ODMT ultra high pressure needle valve:
1. The handle designed according to ergonomics is convenient and comfortable to operate;
2. The unique split stem design solves the problem of concentricity;
3. High quality alloy double thread design,The problem of concentricity is reduced;
4. It is equipped with reliable anti rotation fixing device;
5. Panel or bracket installation;
6. PTFE filler has low friction and long service life;
7. Austenitic, 316 stainless steel body is more resistant to cold corrosion. Conical surface metal seal, whether the medium is gas or liquid, can be completely sealed;
8. The pressure relief hole and connection mode meet the international standard of high pressure threaded connection:
9. Stainless steel nuts and screw sleeves are used for valves.
ODMT provides high pressure needle valve with pressure of 700bar and 4000bar, and interface specifications are ZG1 / 4, M14 * 1.5, etc.
ODMT high pressure needle valve, long working life, simple and easy to operate, can be used in extreme working environment (ultra-high / low temperature, ultra-high pressure, etc.).
| Rated working pressure Psi(Bar) | Interface specification | Diameter mm | Through valve model | Right angle valve model | Double working port Three way valve model | Single port Three way valve model | Double lever Three way valve model |
| 10,000(690) | 1/4" | 2.7 | HPV70A1 | HPV70A2 | HPV70A3 | HPV70A4 | HPV70A5 |
| 3/8" | 3.2 | HPV70B1 | HPV70B2 | HPV70B3 | HPV70B4 | HPV70B5 | |
| 60,000(4140) | M14×1.5 | 1.6 | HPV400M1 | HPV400M2 | HPV400M3 | HPV400M4 | HPV400M5 |
| 15000(1034) | 1/2" | 5 | HPV100D |
