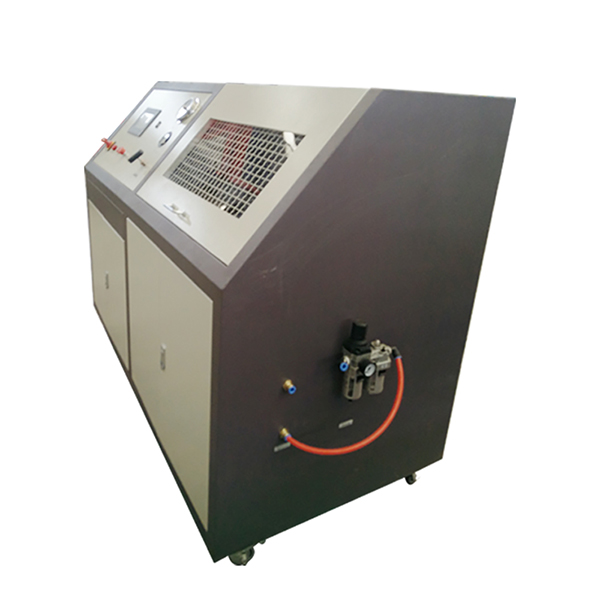

Pressure Burst Test Bench

By using the compressed air as the power source, the output liquid pressure and the pressure of the driving air source pressure is in proportionality. By adjusting the pressure of the inlet air source, the corresponding liquid pressure can be obtained. When the air pressure and the liquid pressure balanced, the pneumatic booster pump will stop charging pressure, the output pressure is stable in the pre adjustment of the pressure. It has the characteristics of explosion proof, adjustable output pressure, small volume, light weight, simple operation, reliable performance, wide application range, etc.. It is especially suitable for high-pressure and ultrahigh pressure blasting and pressure testing of valves, pipes, joints, pressure.

1. Features

By using the compressed air as the power source, the output liquid pressure and the pressure of the driving air source pressure is in proportionality. By adjusting the pressure of the inlet air source, the corresponding liquid pressure can be obtained. When the air pressure and the liquid pressure balanced, the pneumatic booster pump will stop charging pressure, the output pressure is stable in the pre adjustment of the pressure. It has the characteristics of explosion proof, adjustable output pressure, small volume, light weight, simple operation, reliable performance, wide application range, etc.. It is especially suitable for high-pressure and ultrahigh pressure blasting and pressure testing of valves, pipes, joints, pressure.

2. Usage

Applicable range of pressure (bursting) test equipment:

Automobile steering tube, brake pipe, air-conditioning pipe, oil pipe, water pipe cooling, radiator, heater hose, hydraulic equipment, condenser, evaporator, air conditioning filter hose, turbocharging system hose, car brake pump, a cylinder body, a project hydraulic hose, air hose and manifold, rigid pipe, joints, valves,cylinder, pressure gauges, pressure sensor,pressure vessel, pressure transmitter etc.

Function and characteristics of hydraulic pressure test equipment:

The main components is the mature products produced by our company.

The piping system with non welded connection.The test fluid system and driving fluid system are separated; it is more convenient for test temperature control and test media diversification.

The software adopts force control configuration software or written in LABVIEW (computer control).

A variety of ancillary tooling, meet different specimens of installation.

In the testing process, the pressure can be automatically compensated; time after the bursting pressure decreased rapidly, pressure automatic stop system;The protection of tooling, special design, can effectively protect the damage of blasting operation personnel and equipment.

The realization computer control function, can be free to set up a water filled exhaust time, holding pressure time, aeration cleaning time, test pressure in the process of the experiment can be set arbitrarily single or multi section pressure maintaining test, can also holding pressure directly after blasting, boost the speed to maintain a constant, can realize stepless adjustment and test data and curve parameters can real-time display, can automatically save the test results, and any print test reports. (computer control).
