Relief Valve Grinder

M-100 portable valve grinder is a new generation of products developed for adapting to field repair valves. This product has the characteristics of reducing labor intensity, improving labor efficiency, and reducing maintenance costs. Completely replaced imported products. Widely used in petroleum, chemical, metallurgy, power and other enterprises.
Availability:

M-100 portable valve grinder is a new generation of products developed for adapting to field repair valves. This product has the characteristics of reducing labor intensity, improving labor efficiency, and reducing maintenance costs. Completely replaced imported products. Widely used in petroleum, chemical, metallurgy, power and other enterprises.

Has the following advantages:

(1) Small size, light weight and easy to carry.

(2) Simple installation. The product has a combined structure, which is easy to disassemble and install.

(3) Simple operation.

(4) High efficiency and good grinding quality.

(5) Suitable for on-site maintenance in complex environments, eliminating the need for valve disassembly and assembly.

Technical parameters:

Scope of application: angle 60 °, 75 °, 90 °, DN10 ~ 60mm cone valve seat

DN20 ~ 150mm flat valve seat, safety valve

Maximum depth: 250mm.

Input voltage / current: 220V / 2.9A.

Power is 750W.

Operating weight: 3kg

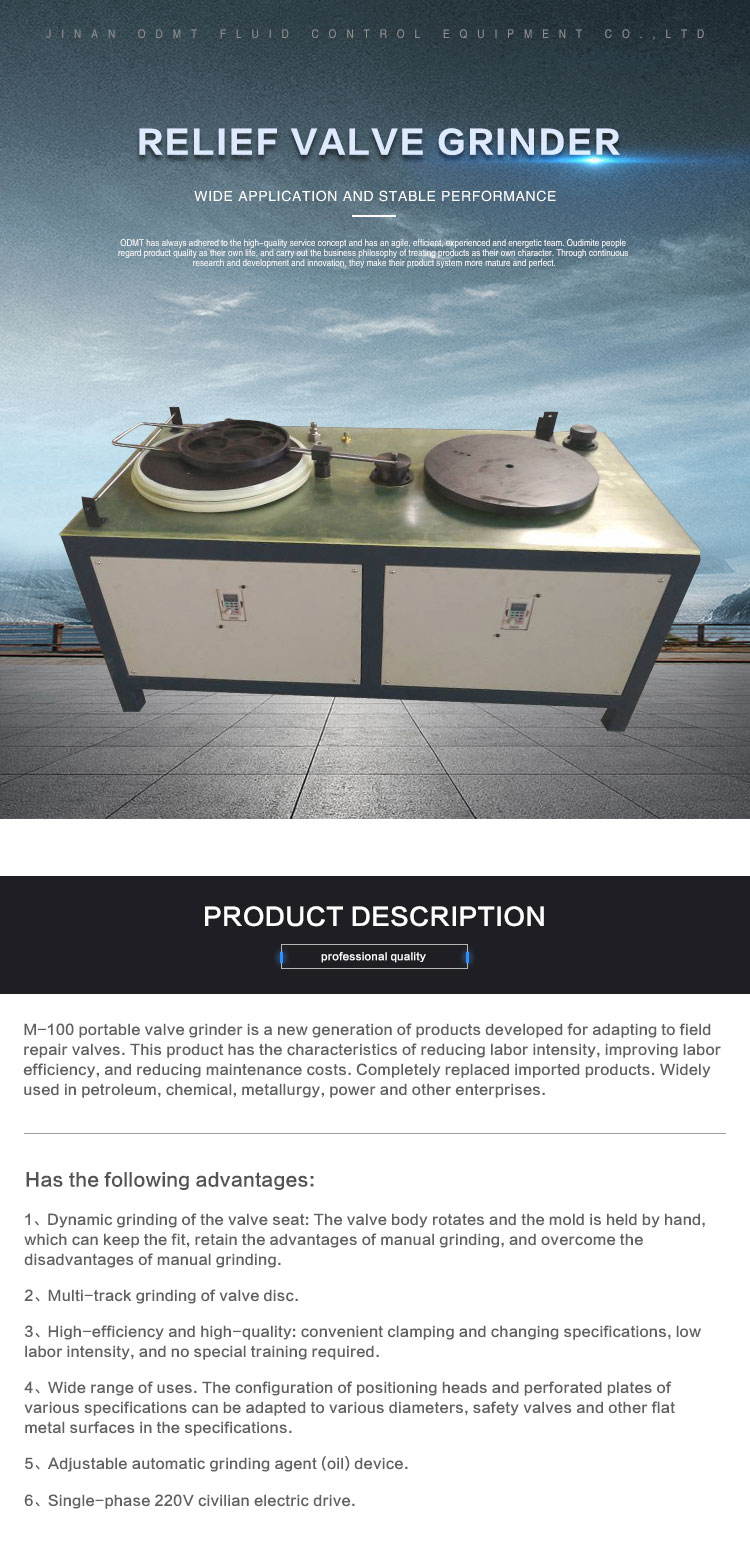

Relief-Valve-Grinder(安全阀研磨机)_01

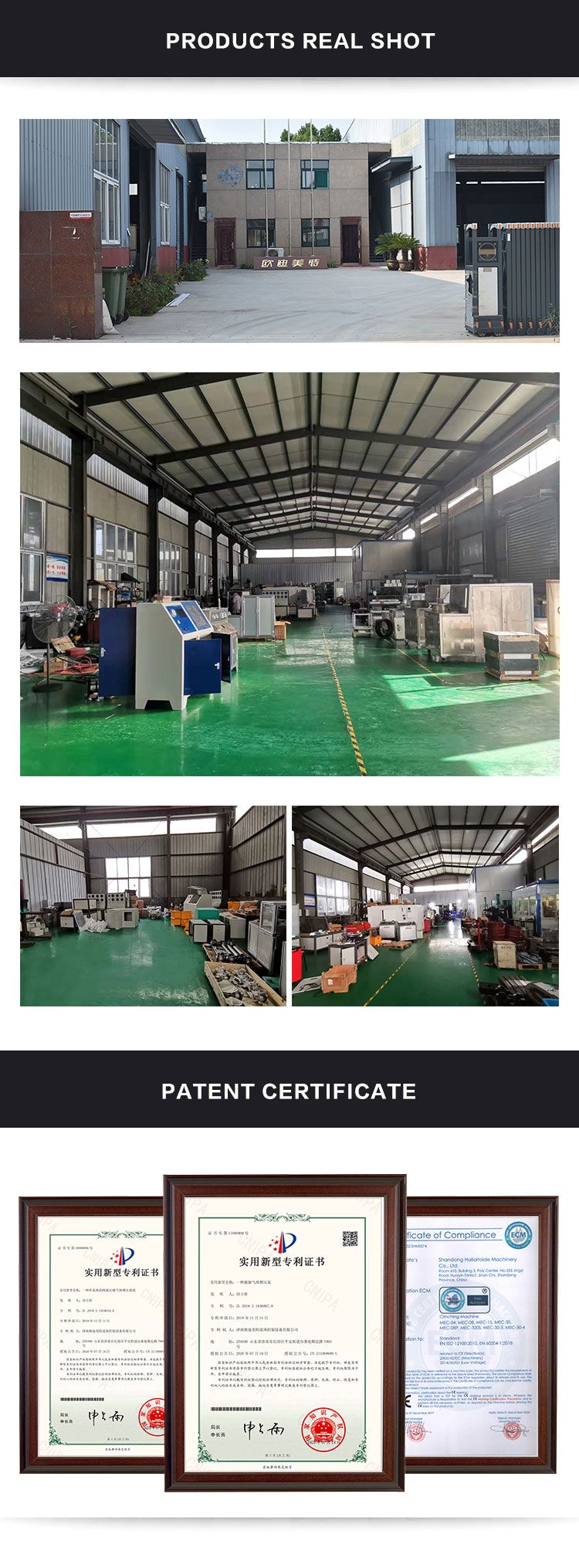

Relief-Valve-Grinder(安全阀研磨机)_02
