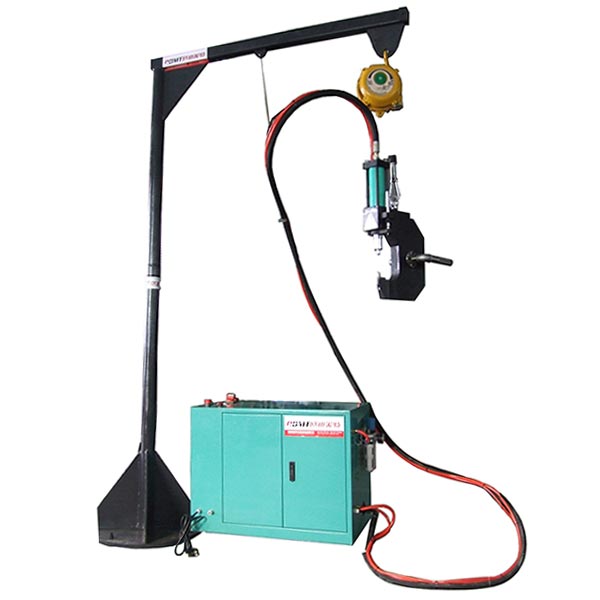

Portable Clinching Machine

Clinching unit with separated ODMT-Powerpackage drive and tongs frame.The intensifier system is installed in the cabinet with wheels and integrated well with the electric box .Here it is possible to combine all drives and tool geometries.

Of solid welded construction with large open space so that an optimal handling with two-hand safety control of the component by the operator is possible.

Clinching unit with separated ODMT-Powerpackage drive and tongs frame.The intensifier system is installed in the cabinet with wheels and integrated well with the electric box .Here it is possible to combine all drives and tool geometries.

Of solid welded construction with large open space so that an optimal handling with two-hand safety control of the component by the operator is possible.

MP series portable clinching machine is a suspended operating tool, which needs to be used in conjunction with gas-liquid power booster. It is driven by ordinary air pressure. The maximum punching force can reach 4.5 tons for type I and 7.5 tons for type II. The maximum stroke is 50mm. The maximum stroke can reach 100mm. All are equipped with two-handed safety operation buttons.

The gas-liquid booster device is the gas-liquid booster part of the split-type gas-liquid booster cylinder. Our company installed it in a wheeled chassis as a whole and perfectly integrated it with the electrical control box.

The main technical parameters:

◆ The air pressure is 3-7kg, and the maximum punching pressure is 4.5 tons and 7.5 tons.

◆ Pressure relay sets and automatically controls punching pressure to ensure processing quality

◆ Power supply voltage 220V / AC control voltage 24V

◆ Air pressure interface G3 / 8 "

◆ Hydraulic high pressure hose 5m
